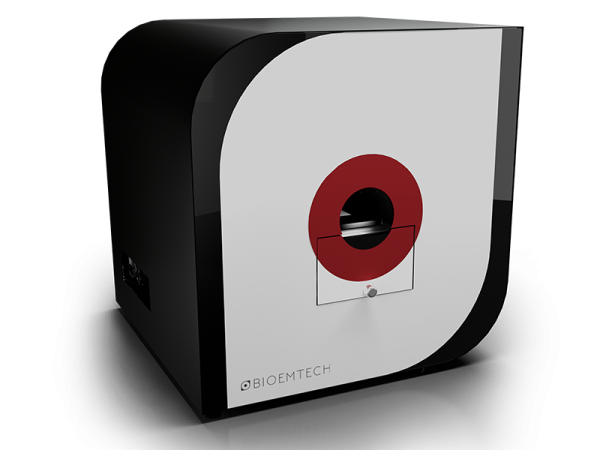

A benchtop preclinical SPECT imaging system

The γ-eye is an advanced small animal SPECT and alpha-emitting isotope live imaging platform developed to deliver fast, real-time in vivo imaging for preclinical research applications. It delivers high-quality imaging of up to four mice or one rat simultaneously, supporting a broad range of nuclear imaging studies while simplifying research workflows.

High Throughput Configuration

Now available in a High Throughput configuration, the γ-eye has been engineered to accelerate research productivity with the same proven performance of the standard imager. An expanded 100 mm x 200 mm active imaging area increases capacity, allowing researchers to process larger study groups with greater efficiency. With the ability to perform more than 110 mouse scans per day, it is ideally suited to large-cohort experiments.

Features

  • Live imaging platform for small animal, SPECT, and alpha-emitting isotope imaging.
  • Optimized to meet the unique imaging challenges of alpha-emitting radiopharmaceuticals.
  • Detects and resolves the separation of daughter isotopes post-alpha decay.
  • Real-time, whole-body imaging since T0 post-injection enabling fast screening of radiolabeled compounds.
  • Interchangeable collimators for optimizing parameters on a wide range of applications.

Specifications

Spatial Resolution <2mm
Dimensions (cm) 43 cm (L) x 46 cm (W) x 43 cm (H)
Dimensions (inches) 17" (L) x 18" (W) x 17" (H)
Weight >50 kg (110 lbs)
Detectable Energy Range 35 - 440 keV
Energy Resolution 11 %
