An advanced hand held digital radiation monitor for all your radiation protection requirements

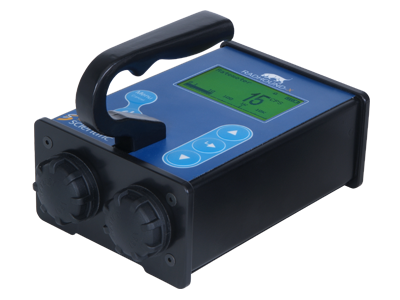

Radhound X/I is an advanced digital hand held general purpose radiation monitor with an internal dose rate detector.

This feature packed instrument boasts unique features.

Simple and easy to use

We take great care to ensure our instruments are very easy to operate. The menu on the Radhound X/I can easily be locked by the user to ensure only basic options are available, giving greater security and protection against accidental setting changes.

Alarm

Radhound X/I has an adjustable alarm threshold. Additionally separate alpha and beta alarms can be set. The sounder is loud and clear, and is suitable for use in many different environments. A symbol flashes on the display when in alarm.

Scaler timer

Radhound X/I has a scaler time mode, allowing the integration of dose rate. Additionally time to dose can be indicated.

Self Test

Radhound X/I automatically checks its health on turn on. It checks the high voltage, battery level, keyboard and sounder.

Peak mode

Records the maximum value seen since the last reset.

Main modes of operation Dose rate, integrate/scaler timer, histogram, Peak value
Menu gives control of system parameters.
Display Large backlit LCD, 70 x 40 mm
Automatic backlight movement sensor - when instrument is picked up, the backlight comes on
Displayed units µSv/hr, mSv/hr, Sv/hr, (R/hr, mR/hr µR/hr)
Response time 0.5 second response
Adjustable averaging time 5, 10, 15 seconds
Integration time adjustable up to 24 hours
Operational parameters Adjustable alarm levels
Mechanical Size: 165 x 115 x 59 mm excluding handle. Impact resistant, waterproof for IP65
Weight typically <1.3 kg
Environmental Operating temperature -10°C to +50°CStorage temperature -25°C to +60°C
Power On screen battery status indication
2 x 1.5V C-cell or optional lithium ion rechargeable
Battery life typically >40 hrs continuous use

What batteries does the Radhound take?

The Radhound comes complete with a fully rechargeable Lithium Ion battery. Included is a charger so you can charge you battery via the mains.

Can I turn the sound off?

Both the clicks and the alarm can be turned on and off using simple short cut buttons. Icons on the display screen tell you whether they are on or off.

Can I use several probes with my monitor?

Each standard Radhound is calibrated with one individual probe. However the Radhound X/E can have up to 5 different probes calibrated with the one monitor allowing you to switch between probes as your work dictates.

Can I use the Radhound to measure dose rate?

Yes, depending on the probe choice, the Radhound can be set up for either dose rate measurement or standard ratemeter for contamination monitoring.

Can I measure contamination over time?

The Radhound has an integrator mode that allows you to measure contamination over a predetermined time. There is also source-finder mode which uses a histogram plot to help you find a specific spot of contamination.

Can I clean the monitor if it gets contaminated?

As the chemically resistant screen is completely flat it makes it easy to decontaminate with no knobs or buttons to clean behind.

Do you have an equivalent to my current probe?

We have a wide range of probes including GM tubes, scintillation probes and alpha/beta separation. We also have equivalents to many of the Mini probes; if you can’t see what you are looking for please ask.

Can I purchase a monitor without a probe?

Yes, all of our monitors and probes are priced and can be bought separately from one another.

Are the monitors made in the UK?

Yes, both the Radhounds and their probes are made and can be serviced here in the UK at our Sheffield office.
